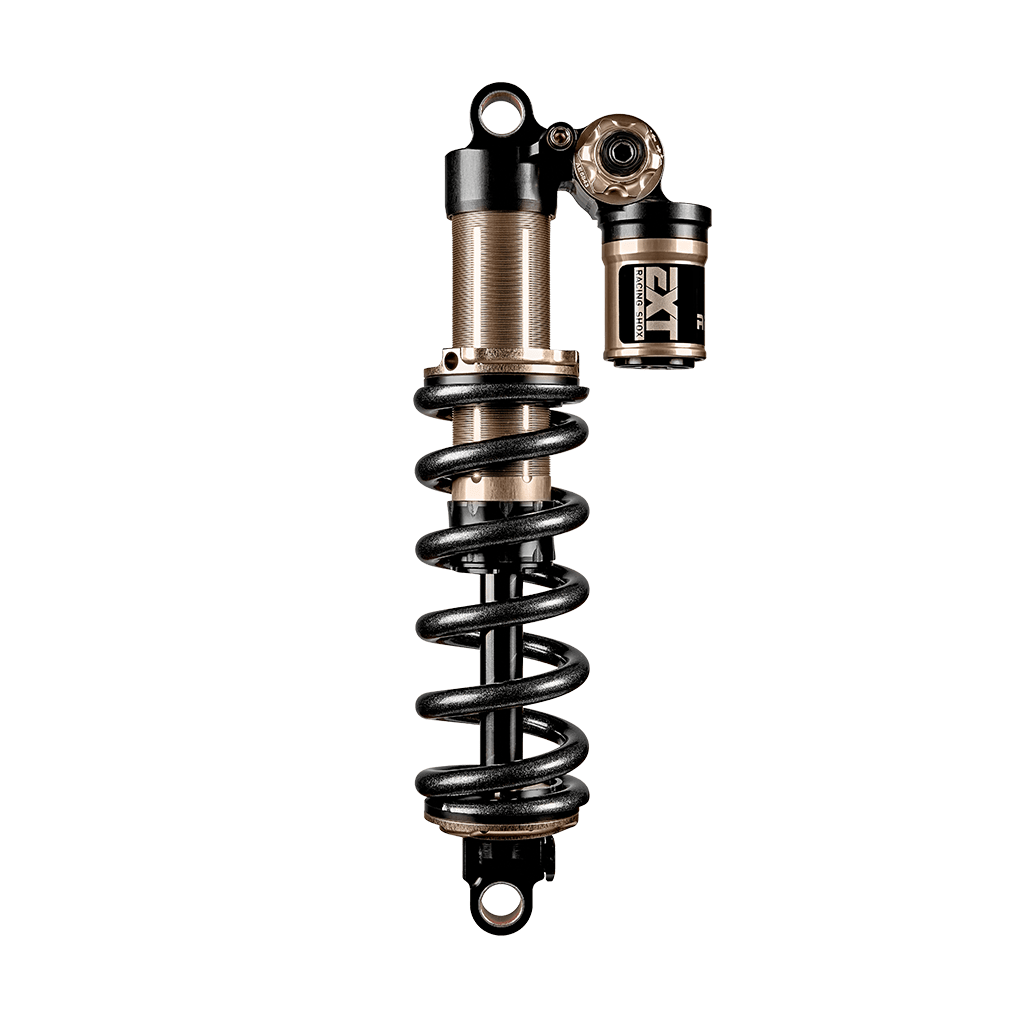

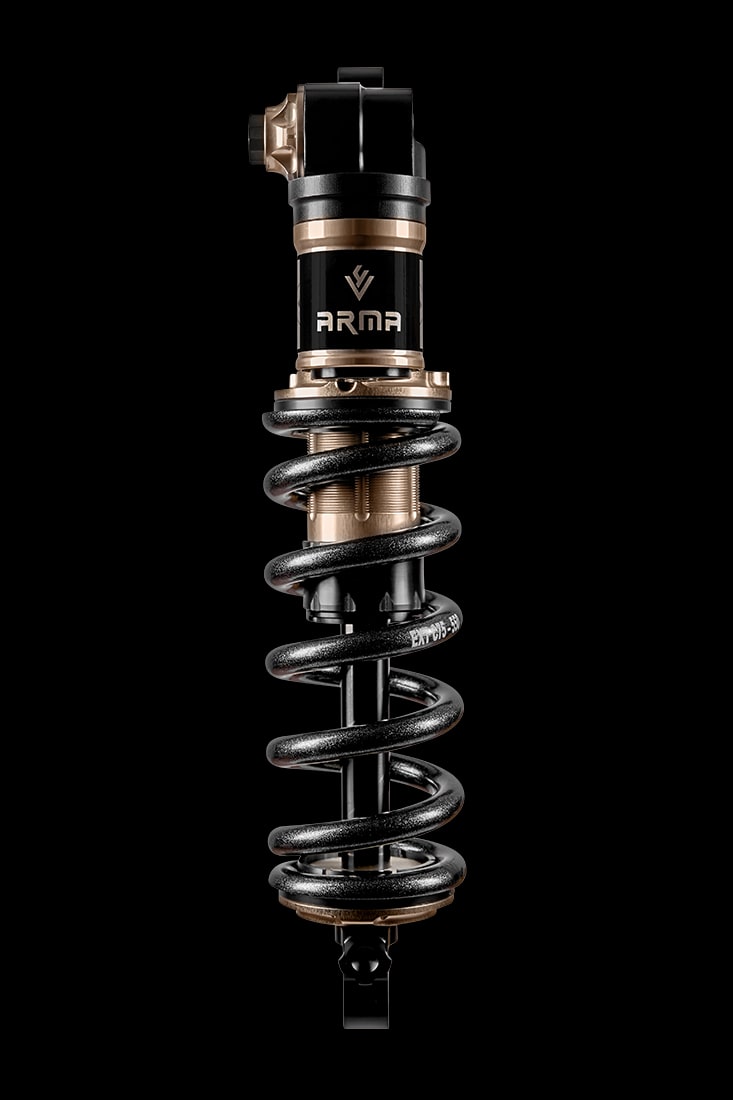

Arma V4

EXT MTB Downhill Shock



Adding to an already legendary resume, EXT is proud to introduce the new Arma and Storia V4 Series. The V4 is specifically designed to raise the bar on what is possible in MTB damper performance technology. Don’t be fooled by the similar appearance to its V3 predecessor, for beneath the surface the V4 beautifully refines and improves what was already an industry game changer. Building off of their prestigious pedigree in motorsports racing, EXT has worked diligently to put out a damper that ensures its rightful place as innovative industry leaders in the highly competitive MTB marketplace.

The V4 not only retains and refines foundational aspects of the V3, such as its unique mid body damper characteristics, hydraulic bottom-out circuit and notable high speed control, while simultaneously addressing and integrating feedback from our riders. The V4 celebrates a position sensitive rebound hydraulic top out system, frequency dependent damping, an externally adjustable HBC and a steel DLC coated damper shaft. All of this and more coming in a stronger yet quieter package.

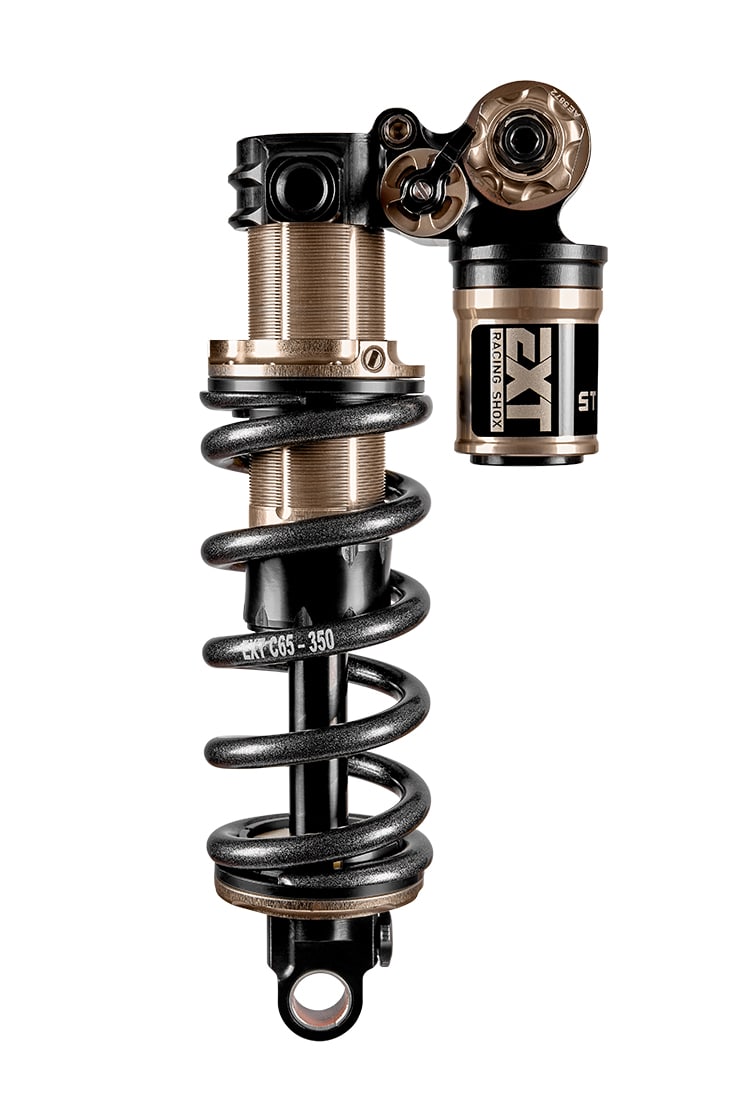

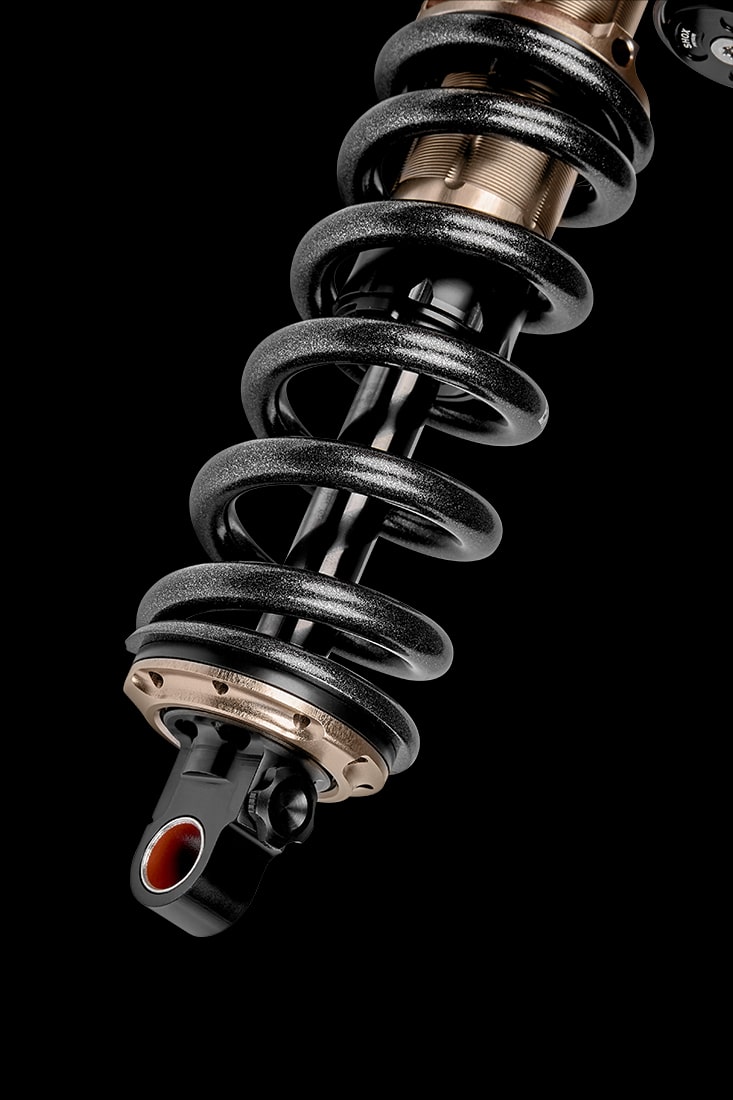

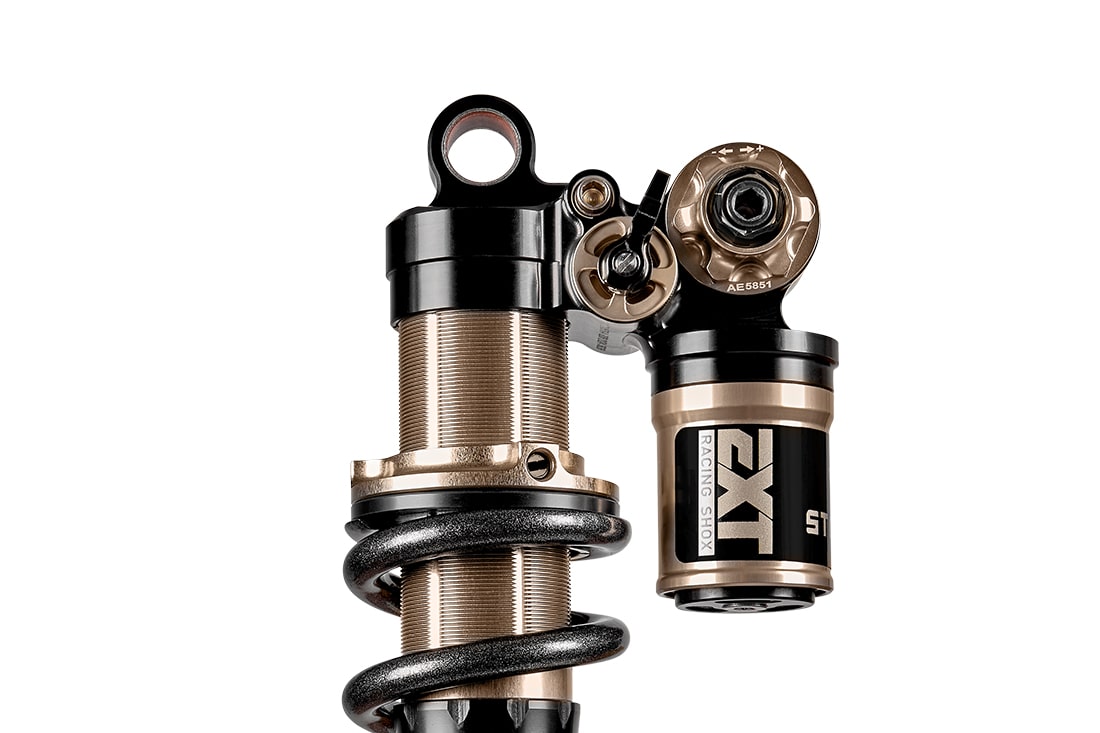

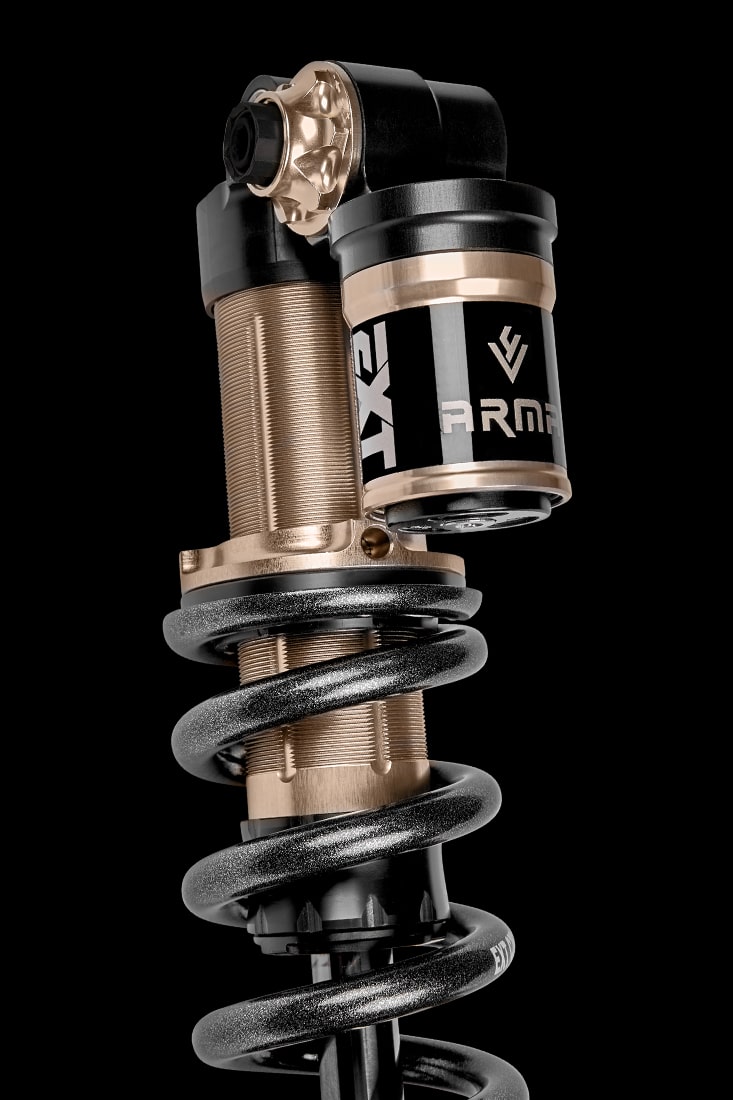

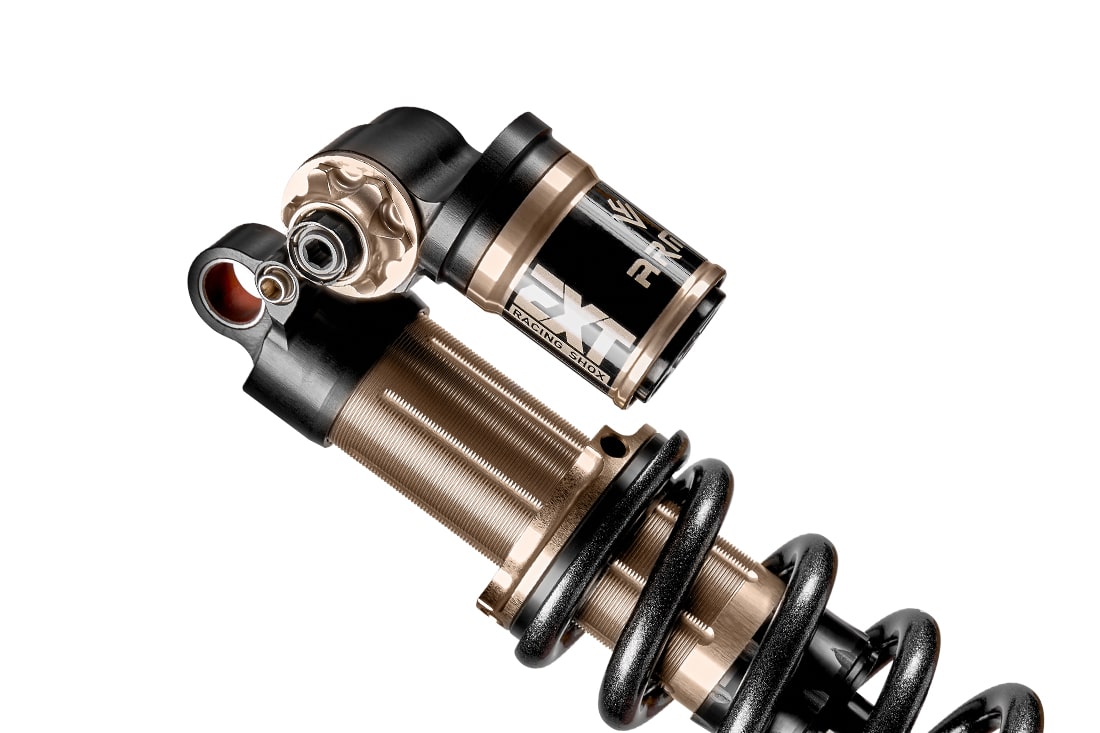

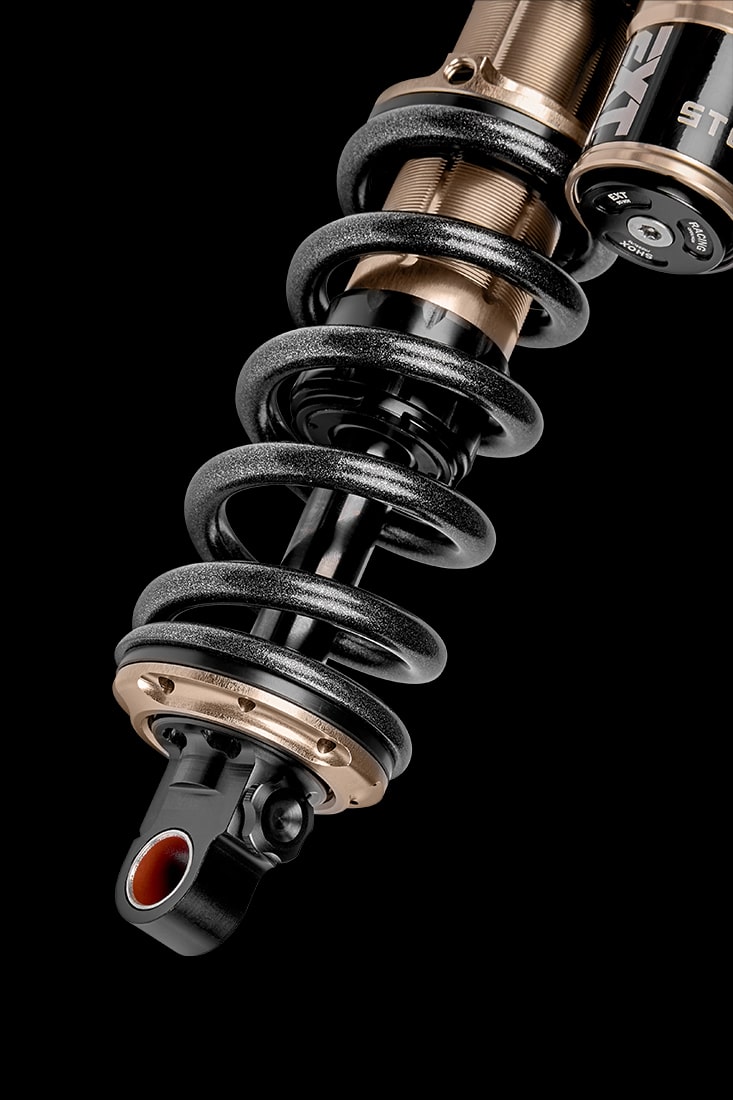

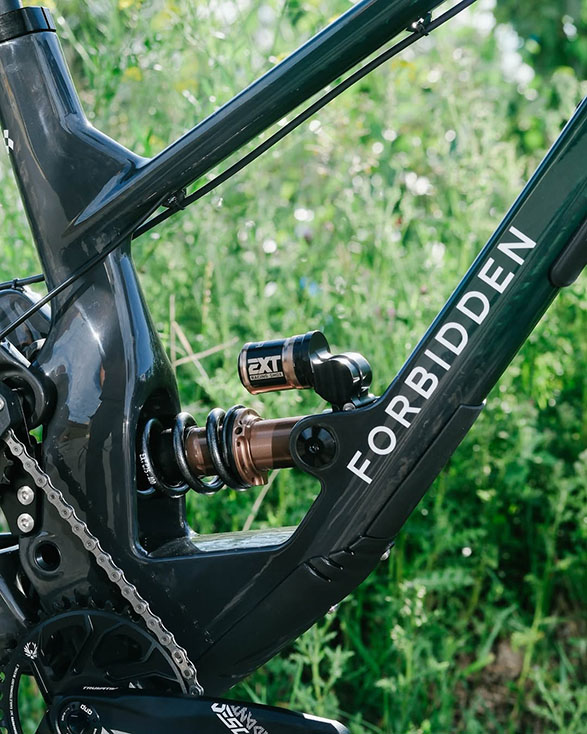

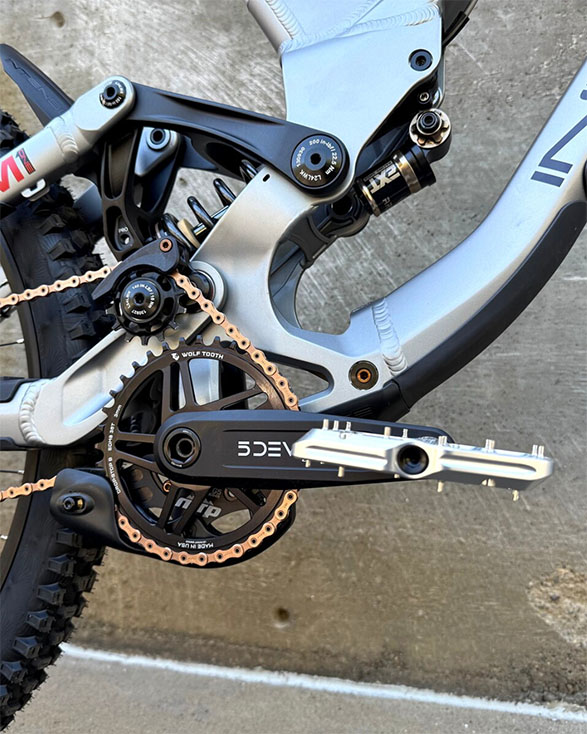

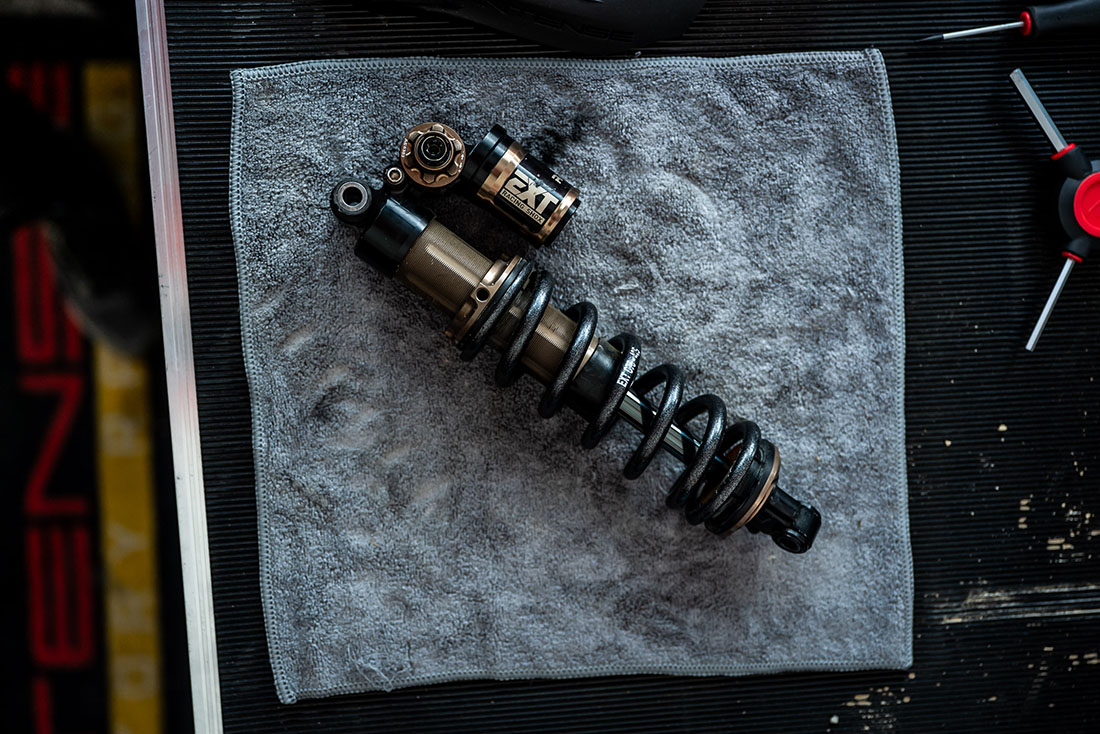

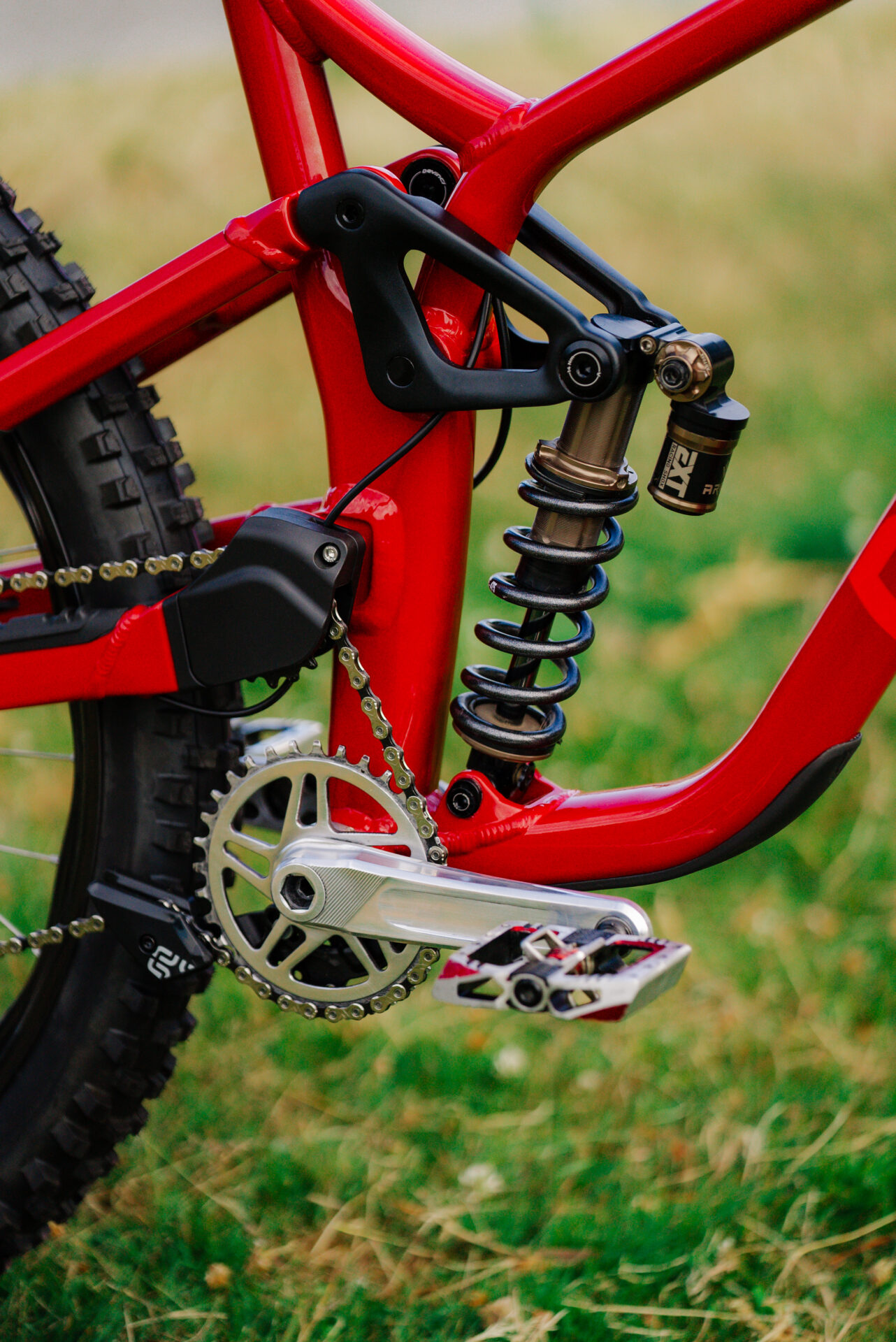

gallery

TECHNOLOGY and features

-

No more harsh bottom-out! This system makes the compression progressive with damping force increasing in the last 15% of the stroke, allowing for softer spring rates, and offering better traction.

-

An independent circuit valve that produces the support needed for ideal pedaling efficiency. LOK can also be custom tuned based on rider preferences. Available on Storia V4 only.

-

Unique rebound system to avoid harsh top-out while improving bike platform stability.

LOW PRESSURE AIR RESERVOIR

The air contained inside the reservoir is only inflated to 55 psi! This maximizes the sensitivity of the shock for a smoother run!

EV2S SHOCK FLUID

Oil EV2S, a high viscosity index fluid, and phenomenal viscosity ratio.
Read More >

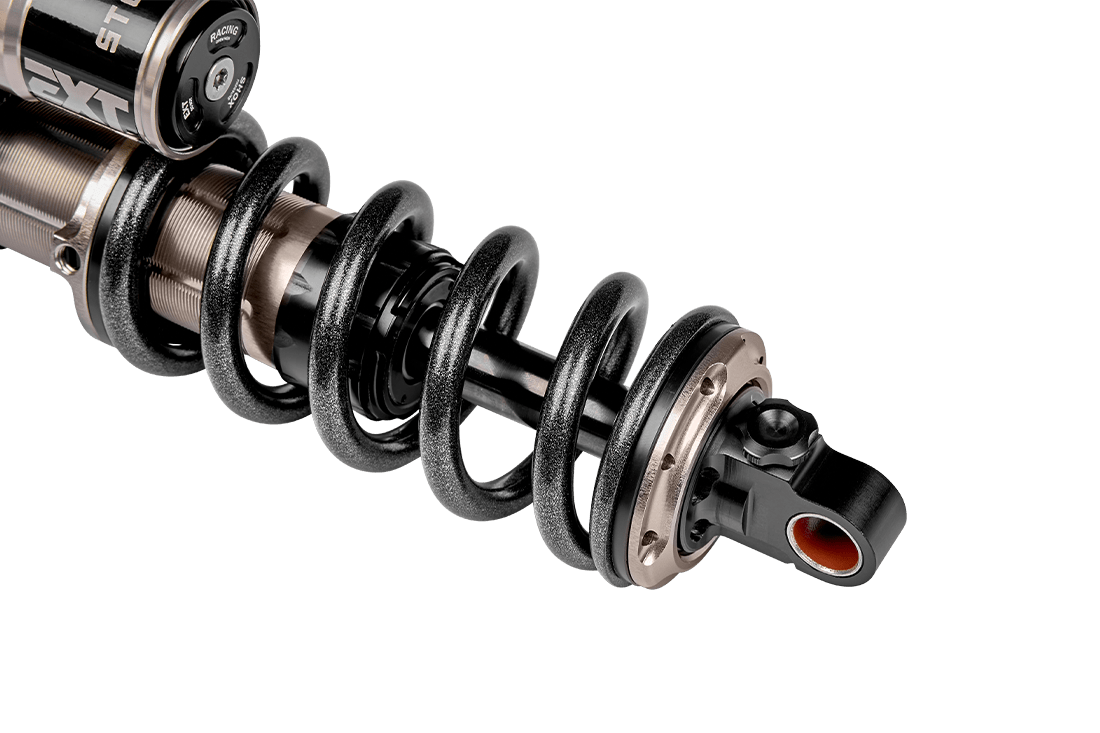

DLC COATED SHAFT

Ø14 mm high strength chrome-moly steel shaft with DLC ultra-low friction surface coating to increase durability.

Specifications

  • PSR (Position Sensitive Rebound), a new unique hydraulic top-out system that eliminates harsh top out and improves sensitivity.
  • Riders can now adjust high and low speed compression with a common multi-tool, needing only 5 mm and 4 mm Allen keys.
  • Frequency dependent damping Adjustable HBC: Once Developed by EXT for motorsport and later introduced in MTB applications, the new HBC system is now more powerful and starts in the last 20% of the stroke. This allows for a lower spring rate choice for maximum compliance, traction, and control.
  • No risk of cavitation: high turbulent flow valves keep damping forces independent from viscosity and temperature changes to perfect pressure balance, eliminate aeration and cavitation, all with very low hysteresis to improve dynamic response.
  • New coatings: improved durability thanks to a new proprietary DLC coating of the chrome-moly steel shaft, and an innovative proprietary DHC tube coating process, both assuring maximum wear resistance.
  • Oil EV2S, a high viscosity index fluid, and phenomenal viscosity ratio.
  • Spring thrust bearings ensure alignment, prevent spring rub and minimize spring noise.
  • Reservoir with large volume bladder design, inflated to 55 psi only
  • More silent.



 PRICE  1069,00 €/$
 Spring Sold Separately

METRIC STANDARD
210 / 47.5 mm
210 / 50 mm
210 / 52.5 mm
210 / 55 mm
230 / 57.5 mm
230 / 60 mm
230 / 62.5 mm
230 / 65 mm
250 / 67.5 mm
250 / 70 mm
250 / 72.5 mm
250 / 75 mm
METRIC TRUNNION
185 / 47.5 mm
185 / 50 mm
185 / 52.5 mm
185 / 55 mm
205 / 57.5 mm
205 / 60 mm
205 / 62.5 mm
205 / 65 mm
225 / 67.5 mm
225 / 70 mm
225 / 72.5 mm
225 / 75 mm
